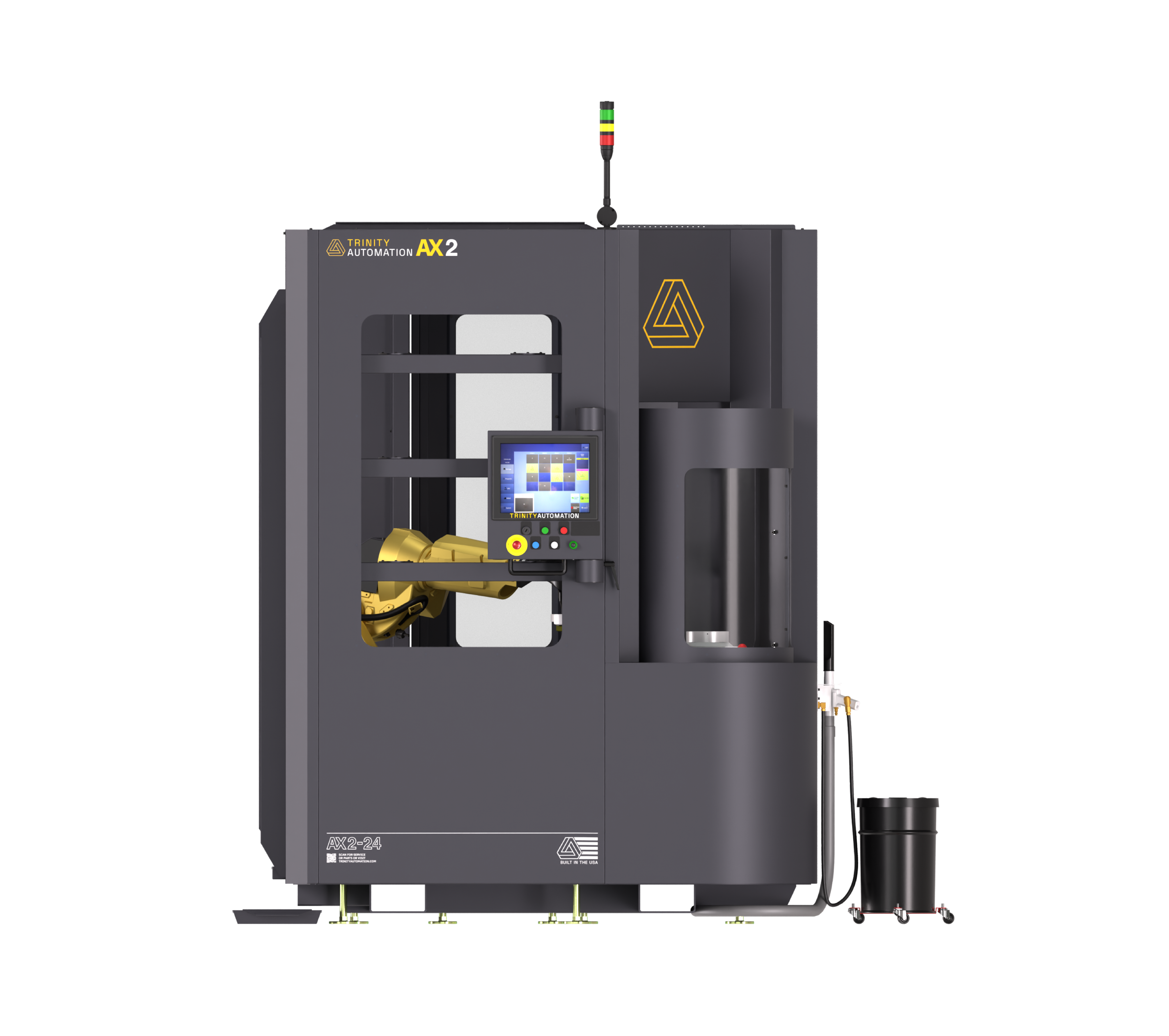

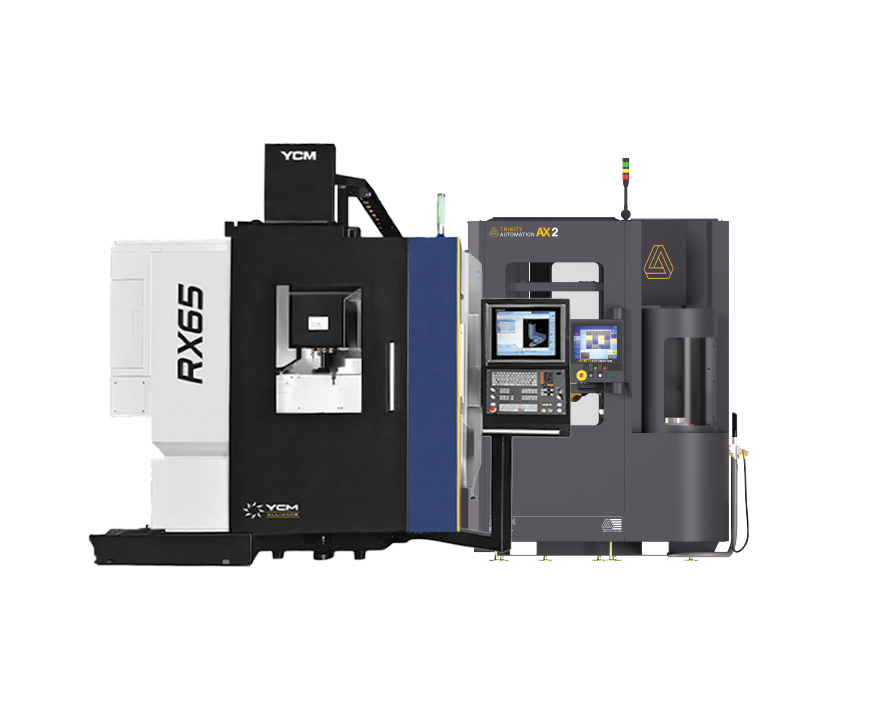

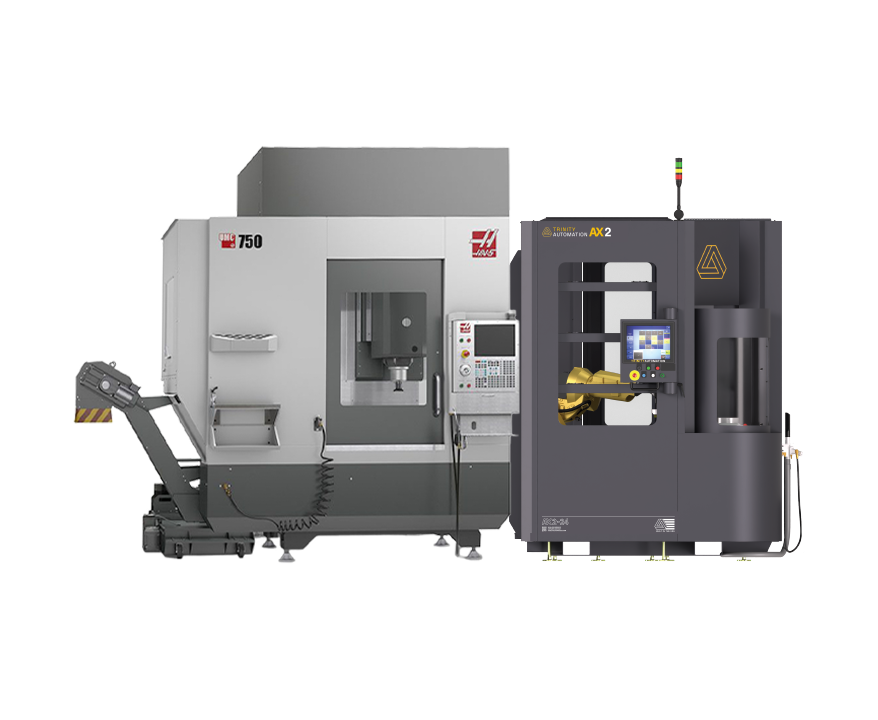

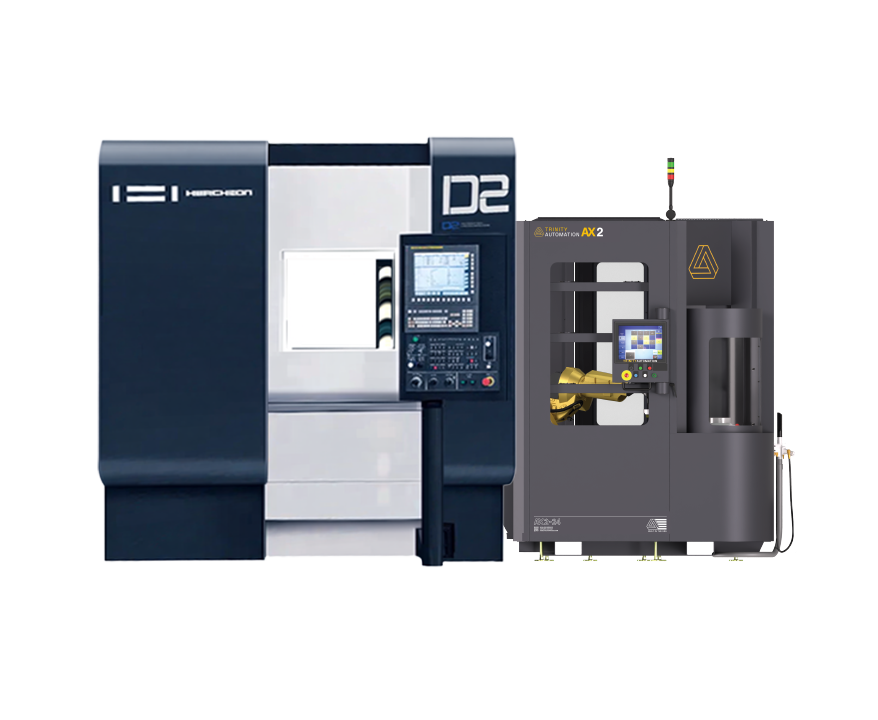

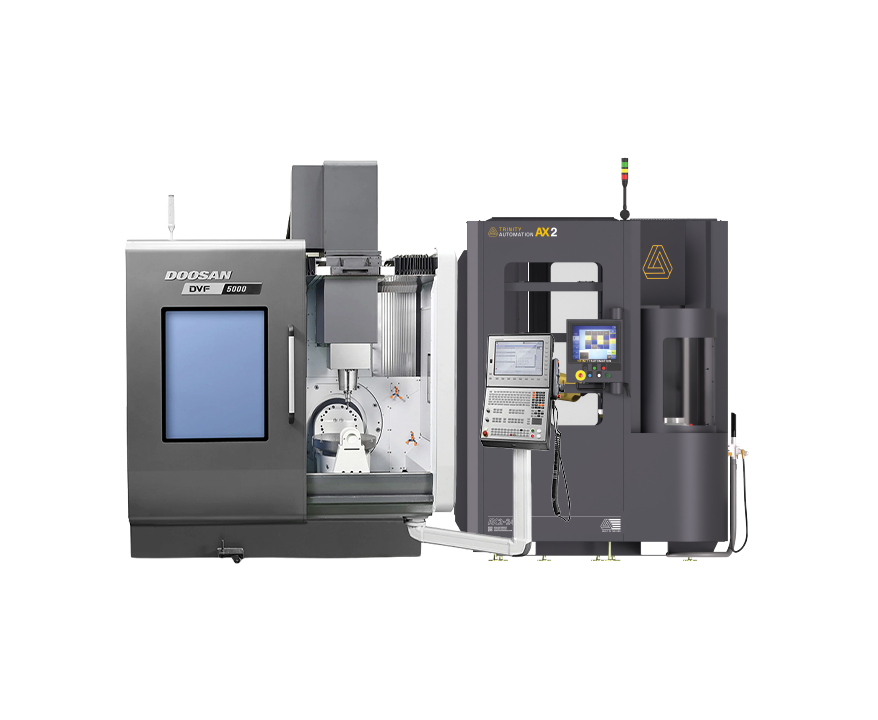

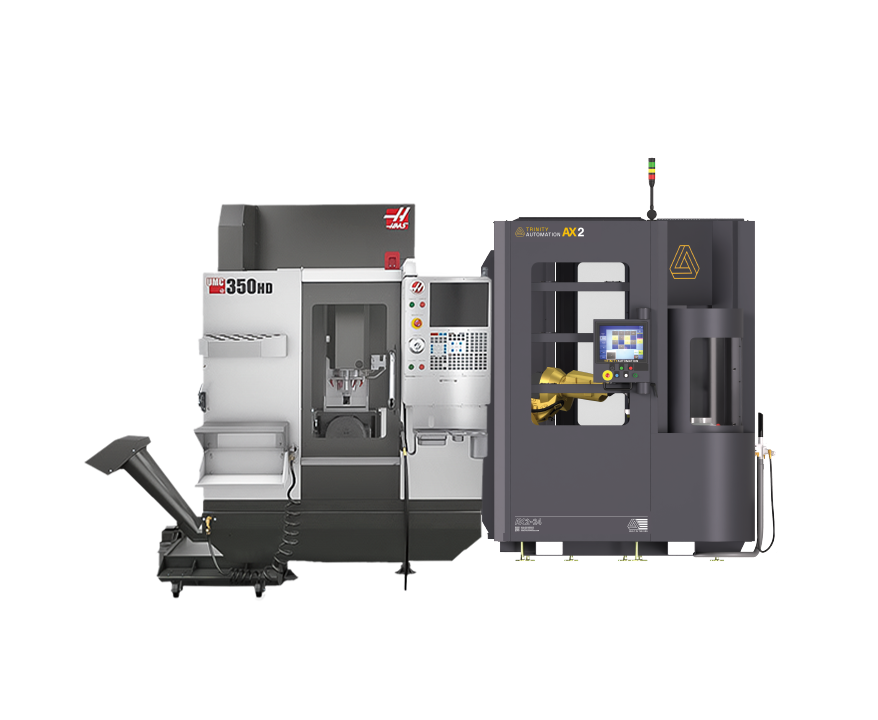

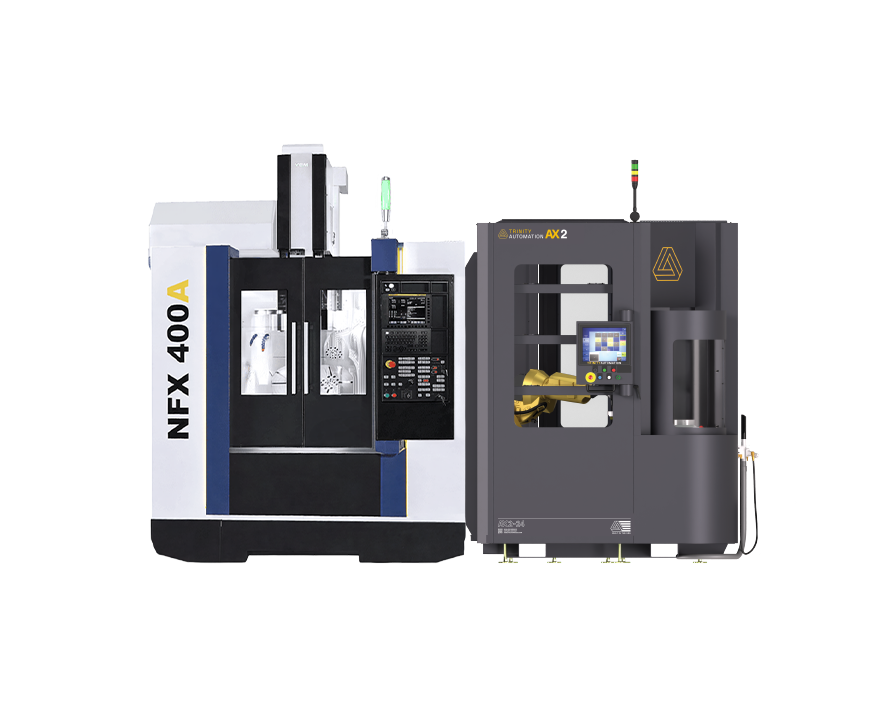

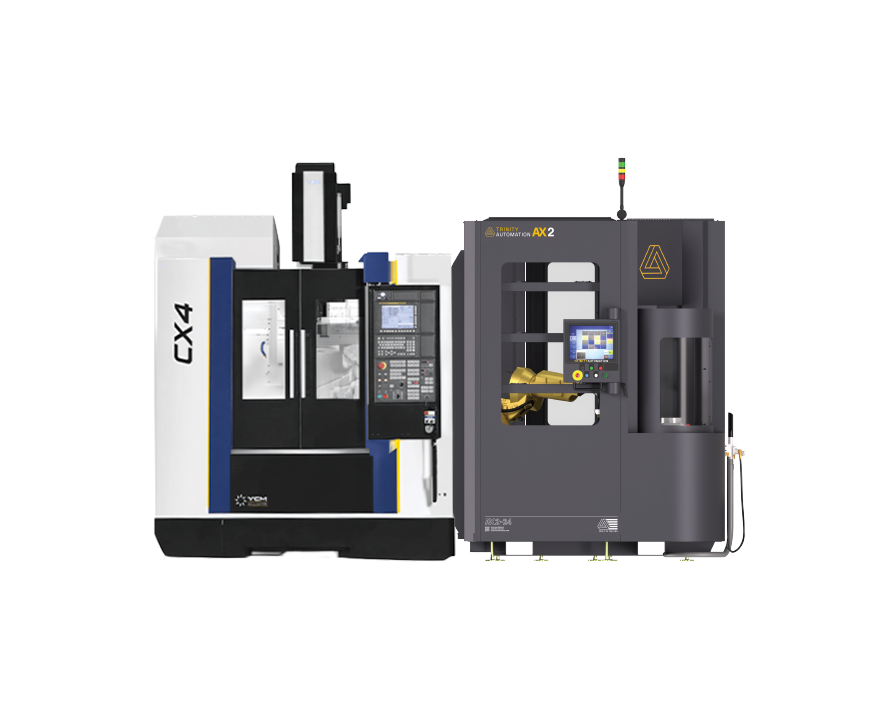

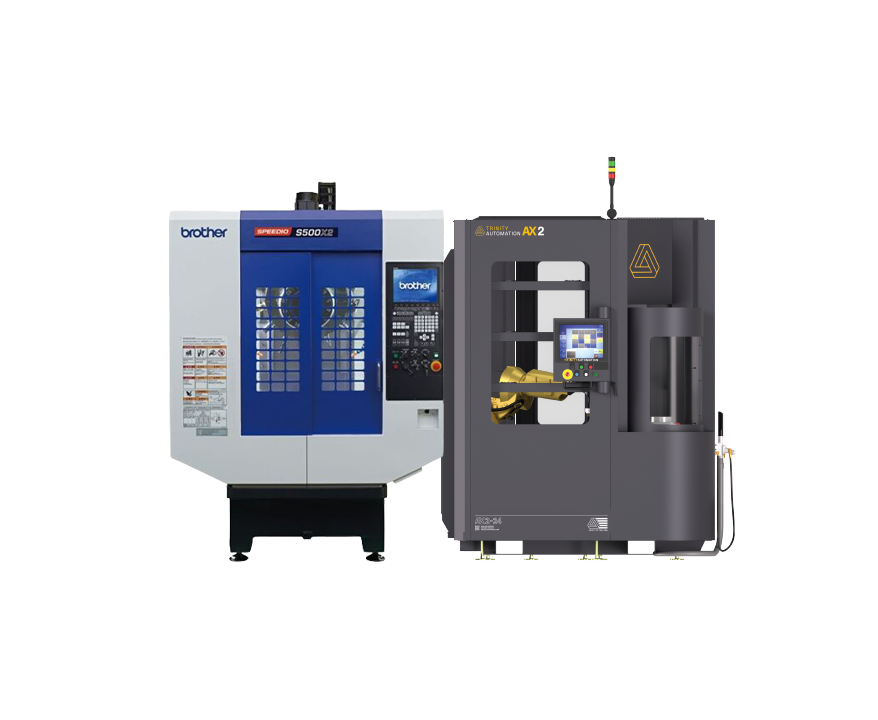

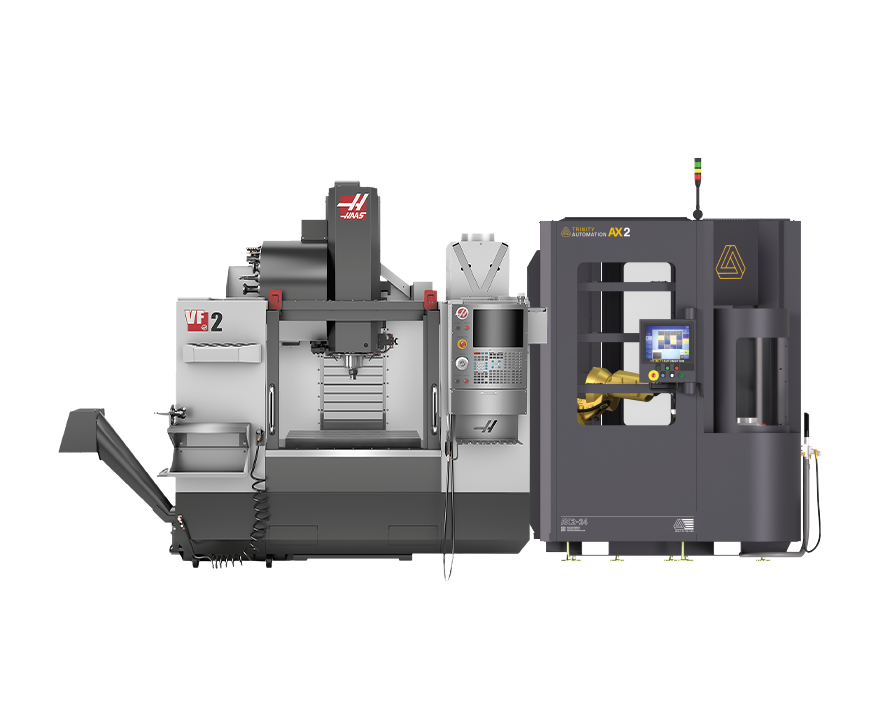

Trinity AX2 Automated Pallet System

AX2 Features:

• Fanuc Robot M-20iD Robot: 55 lbs. Capacity

• 15” Touch Screen Control w/Trinity AXPM Software

• Pallet Designed for a Single Clamping Module

• Single Pallet Operator Station with Rotating Receiver

• Complete CNC Table SetUp Including:

• Receiver with Single Clamping Module

• Integration onto CNC Table

• Clamp Confirmation For Pallets

• Controls Package with Clamp Confirmation Detection

• Blow Offs for Contact Surfaces

• Integrated Fanuc OEM 220VAC, 3 Phase Transformer

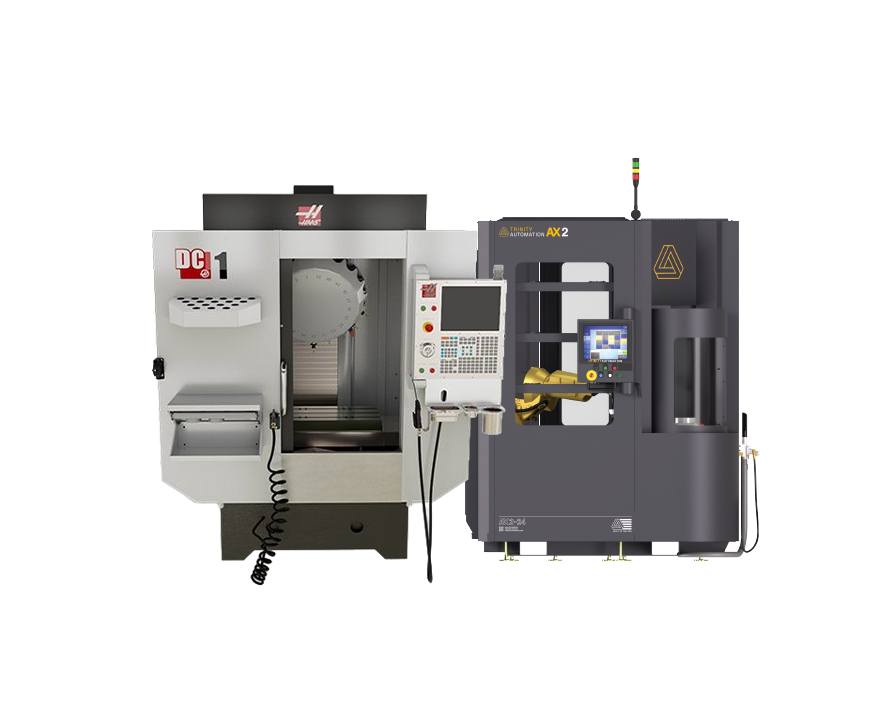

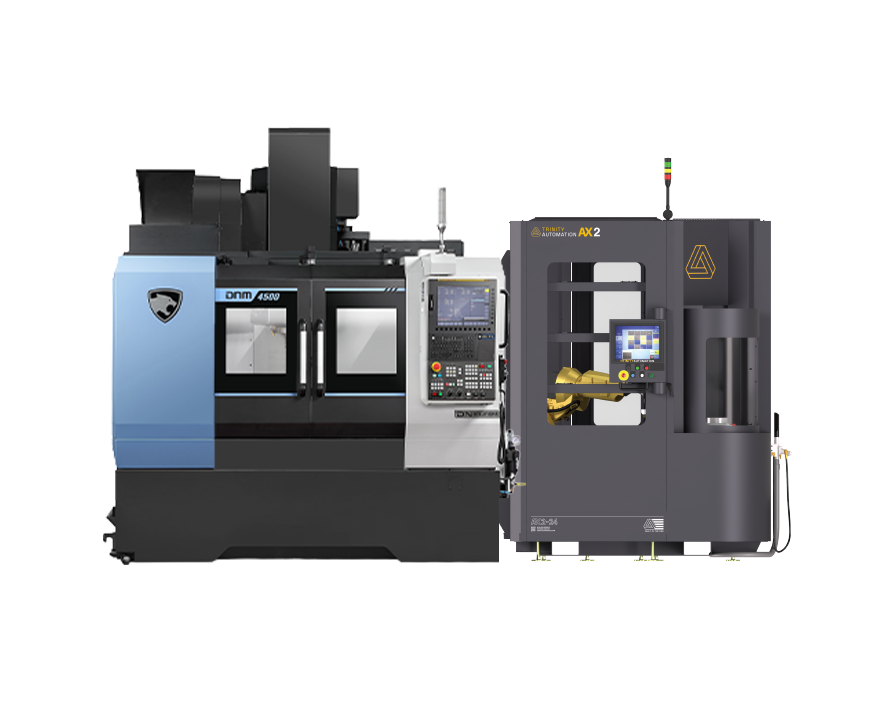

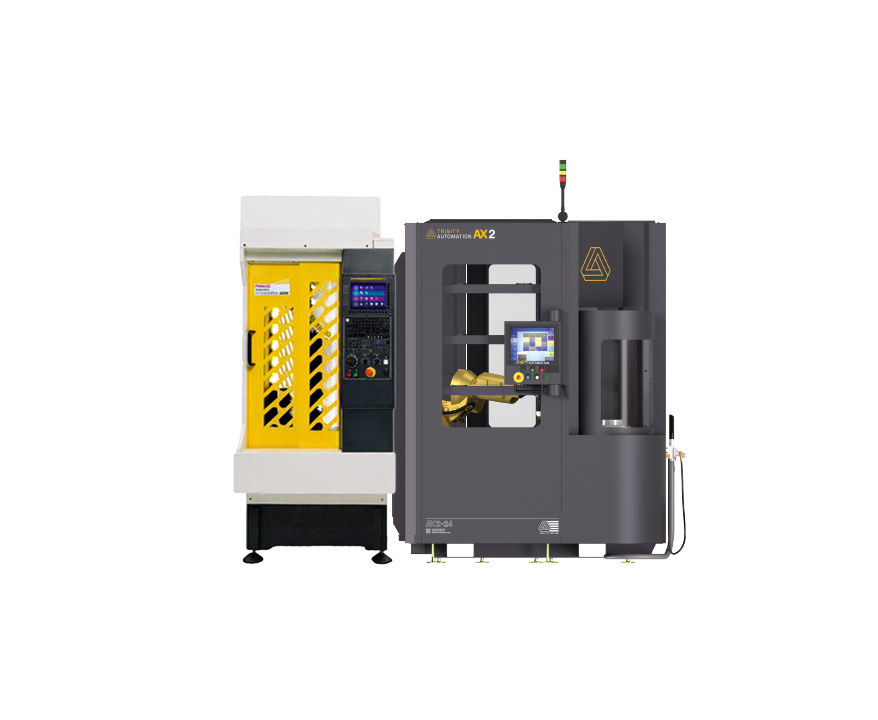

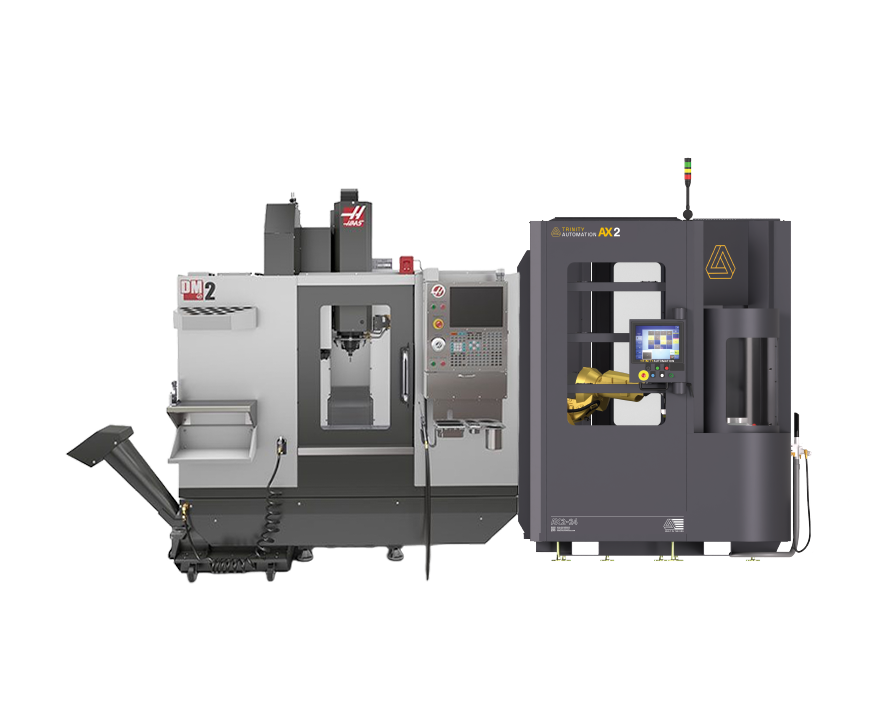

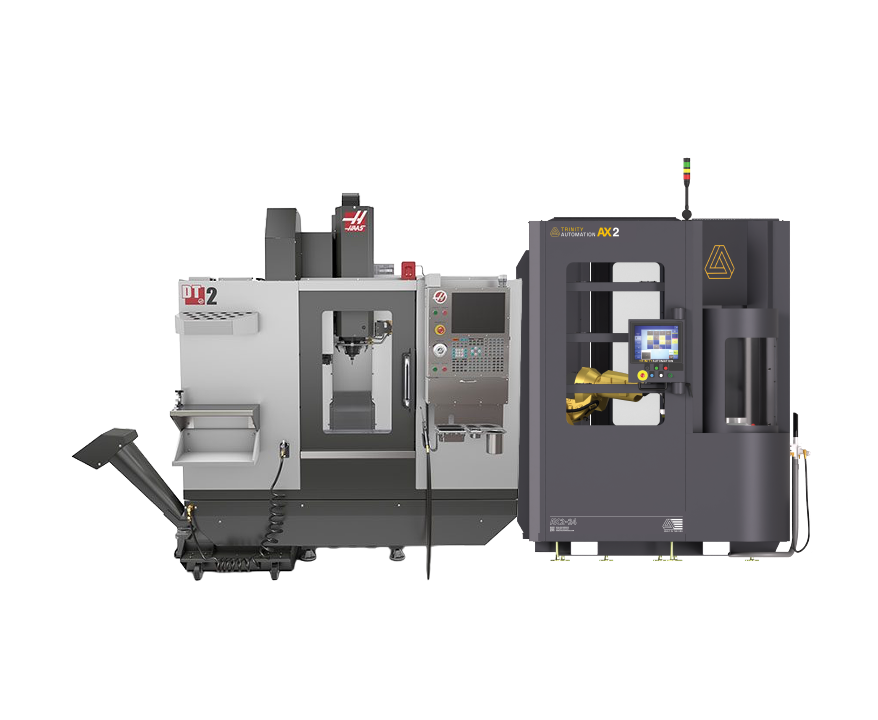

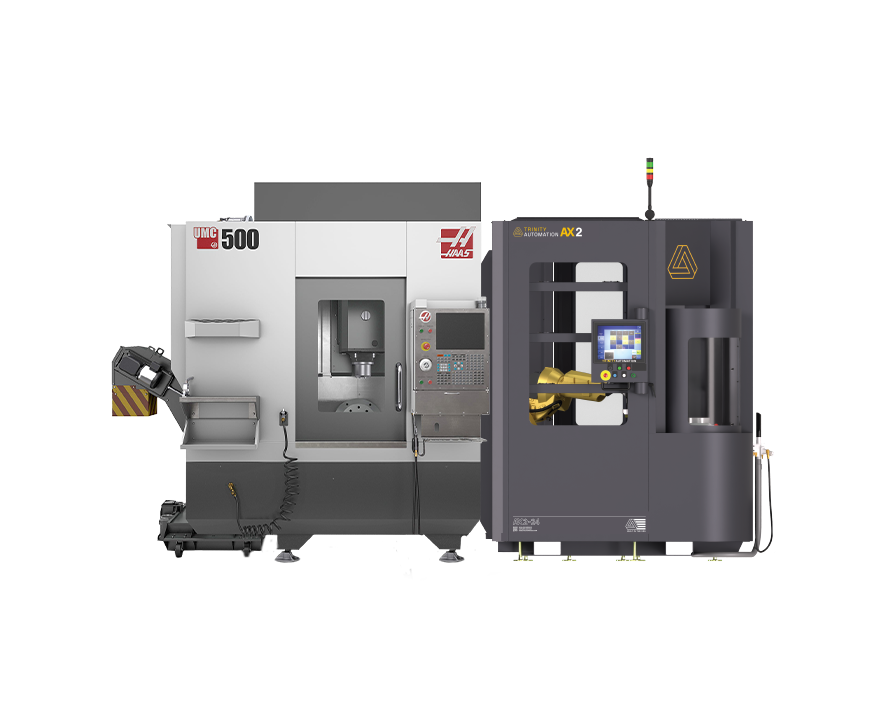

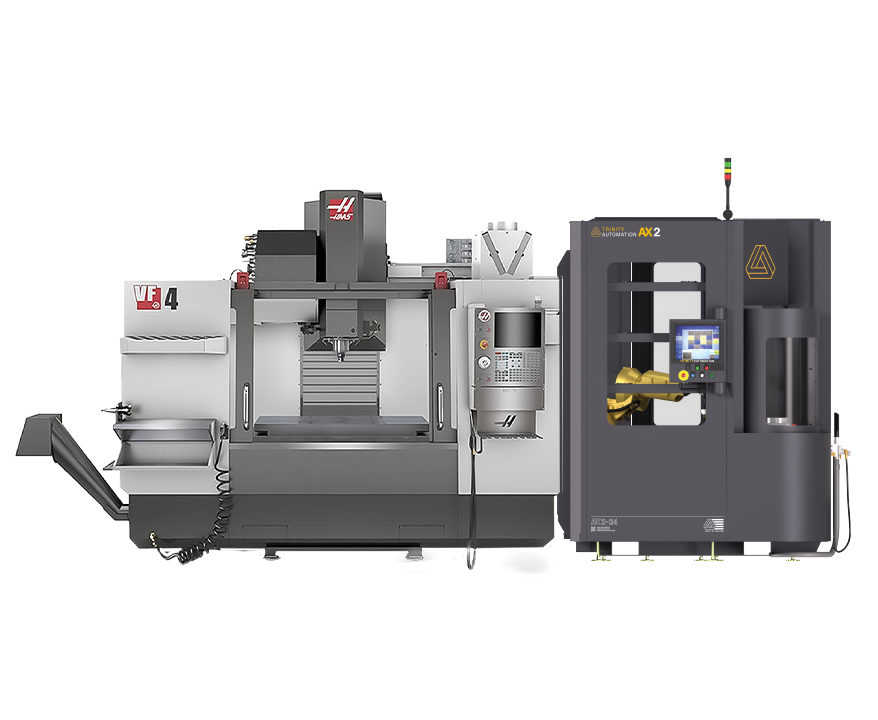

• CNC machine integration and auto-door installation

• System Crating & Preparation for Shipment

• System Installation & Operator Training (5 Days)

• Power: 220 VAC (3 Phase) 40A

• Option: 480VAC (3 Phase) 20A

• Air: 100-120 psi 60 SCFM

JF Precision

MTDCNC and Derek discuss Trinity

Unmanned Journey of an AX2 Part

Made in USA

With a max part size of Ø16" x 9"H and pallet storage of up to 24

Stock AX2 automated pallet loading systems are ready to ship from our Ontario, CA factory.

Waiting in the morning light, ready to be filled with parts

With a max part size of Ø16" x 9"H and pallet storage of up to 24 locations
